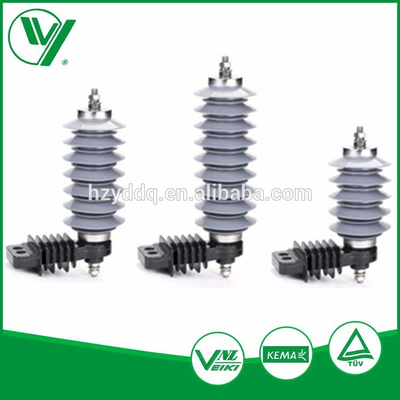

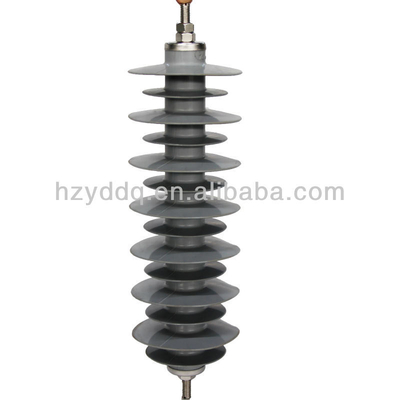

YH10W-24 Gapless Lightning Arrester 10kA 24kV IEC60099-4

MOQ:	30
Prijs:	1

Detail Information

Product Description

Detail Information

Model nr.:

YH10W-24

Ontladingsstroom:

10ka

Spanning:

24KV

Schuurdiameter:

138/108

Hoogte:

266 mm

Grof gewicht:

3 kg

Kruip afstand:

824 mm

Lange duurstroom:

400A

Bliksemimpuls zijn bestand tegen:

150 kV

MOCV:

19.5kV

Restspanning:

71.5kV bij 5Ka

Gelijkstroomreferentiespanning:

34kV

Hoge stroomimpuls:

100KA

Stroomfrequentie is bestand tegen:

50kV

Materiaal:

Zinkoxid

Markeren:

24kV gapless lightning arrester

10kA substation lightning arrester

IEC60099-4 compliant lightning arrester

Product Description

Gapless Types of Lightning Arrester 10ka, 24kv

Product Specifications

Attribute	Value
Model NO.	YH10W-24
Discharge Current	10ka
Voltage	24kv
Transport Package	Carton
Specification	IEC60099-4
Trademark	YONGDE
Origin	China
HS Code	85354000
Production Capacity	5000/Month

Technical Details

Rated voltage: 24KV

Shed diameter: 138/108

Height: 266mm

Gross weight: 3kg

Creepage distance: 824mm

Long duration current impulse: 400A

Lightning impulse withstand: 145/150KV

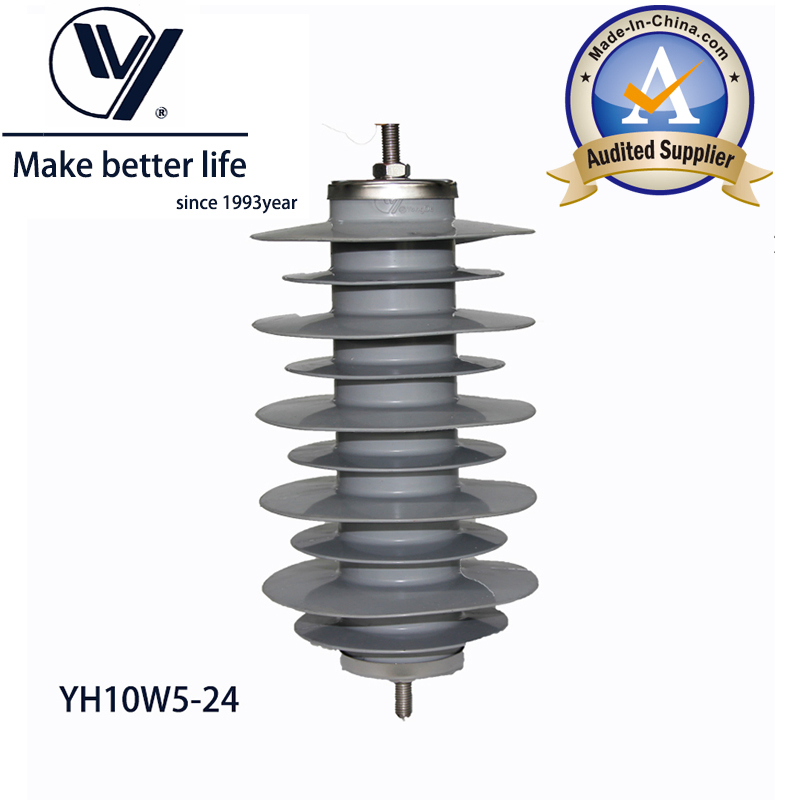

Type	YH10W5-24/66
Rated voltage (kV)	24
MOCV (kV)	19.5
Nominal Current (kV)	10
Residual voltage of steep impulse at 5kA (kV)	71.5
8/20µS Residual voltage of lightning impulse current (Peak value) at 5kA (kV)	66
Residual voltage of switching impulse current (peak value) at 1kA (kV)	50
1mA D.C reference voltage (kV)	34
Line discharge level	1
2mS long duration impulse current (A)	400
4/10µS High current impulse (kA)	100
Lightning impulse withstand (kV)	150
Power frequency voltage withstand (dry/wet) (kV)	50
0.1S TOV (kV)	28.8
1S TOV (kV)	27.6
10S TOV (kV)	26.4
1200S TOV (kV)	24
Creepage distance (mm)	824
Material employed in series non-linear resistor	Zinc Oxide
